Design and manufacturing according to codes, rules and customer specifications

  • Pressure range from 1 to 20 bar for lubrication and up to 250 bar for regulation, seal oil, or hydrojacking
  • Flow range until 6 000 L/min
  • Power up to 200 kW
  • Atex Zone 1, Zone 2 components
  • NACE MR01/75 components
  • U-STAMP, PED 2014/68/UE certified
  • Electric wiring according to european and american rules
  • Materials stainless steel (304L, 316L, 321, …), low temperature carbon steel, duplex, inconel, sanicro, titane…
  • Tubing with double ferrule fittings

Offshore, onshore and FPSO applications

  • Centrifugal compressors
  • Reciprocating compressors
  • Steam turbines
  • Process pumps

Tests on request :

  • Performance tests according to API 614 and customer specifications
  • Flushing according to API 614
  • PMI (Positive Material Identification)
  • NDE (Non Destructive Examination)
  • Painting pull off test according to ISO 4624
  • Tests in 50 / 60 Hz
  • Shaft ends alignment with laser guide
  • Test run : particle counter
  • Noise measurement
  • Chart recorder : pressure, temperature

Projects :

Kashagan, Total Akpo, Lukoil, El Gassi, Total Gonfreville, GDF Cerville, Adco Neb, OGD III, AGD II, Sasol, Ras Gas, Aramco-Hawiyah, Ras Laffan, Exxon NDG, Amak, Kirishi, Manmad, Chile, …



Our realizations of lube oil consoles



Lube oil console API 614 : Kirishi project

  • Lube oil console according to API 614
  • Double oil cooler, accumulator, oil tank and oil demister made in stainless steel by Oeltechnik-France
  • Water cooling with turbine
th_Centrale_Kirishi Turbine_kirishi
th_Echangeur_kirishi



Lube oil console API 614 : Total Gonfreville project

  • Lube oil console according to API 614
  • Tank with hand rails
  • Integration of plate cooler
  • 2x6 ways transfer valves tom commute simultaneously water and oil

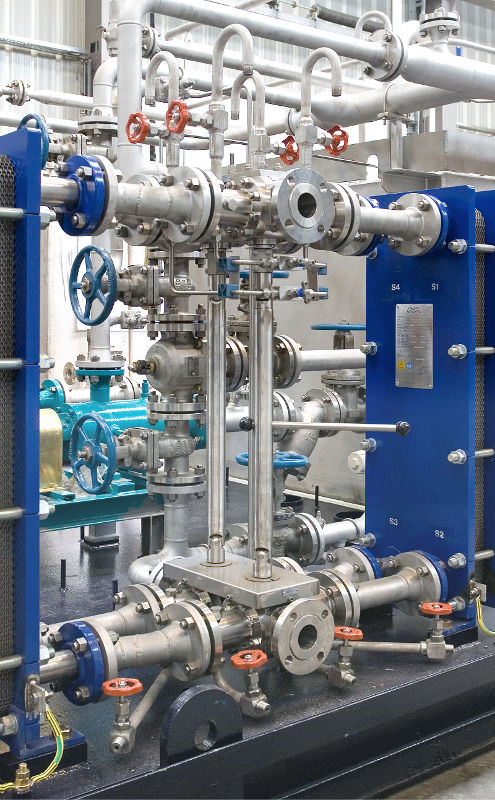

th_Echangeur_Gonfreville th_Centrale_Gonfreville





Lube oil console : Manjung project

  • Flow rate : 2 x 5400 l/min
  • Tank capacity : 140 000 l
  • Lube oil console for steam turbine 700 MW

th_Centrale_Manjung





Lube oil console : Manmad project

  • Lube oil console according to API 610
  • Flow rate : 37 l/min
  • API vertical submerged pump
  • U-STAMP air cooler
  • Panel mounted instruments

th_Centrale_Manmad

Lube oil console : Man Turbo Bilborec project

  • Console PED 97/23/CE - ATEX

  • Flow : 410 l/min

  • Full stainless steel

  • Destination : Spain

th_101_4636_12_man_turbo_bilborec_3



Lube oil console : Shah gas project

  • 13 lube oil consoles API 614

  • Flow range : from 119 to 610 l/min

  • U-Stamp pressure vessels

  • Oil demister made by Oeltechnik

  • Destination : Abu D'habi

th_TD_Shah_gas_



Lube oil console : Zadco Konsberg project

  • Lube oil console for gas turbine (revamping)

  • Flow : 900 l/min

  • API 614

  • Destination : Abu D'habi

th_101_4637_12_DR_Zadco_Konsberg_6



Fuel skid : Perenco Batanga project

  • Stainless steel skid

  • Gas flow : 5310 Nm3/h at 18 barg

  • Design pressure : 35 barg

  • Destination : Gabon

th_101_4647_12_-_Perenco_2 th_101_4647_12_-_Perenco_-_installation_skid_sur_site

Specialists at your service

A specialized team is at your disposal to answer your requests. We study the specifications and respond in a timely manner in accordance with applicable regulations and codes.
