We designed and manufactured a gas separator skid for an offshore platform, meeting the stringent requirements of the oil & gas industry in terms of safety, reliability, and regulatory compliance. This skid reflects our expertise in the engineering and manufacturing of pressure equipment for offshore environments.
A Gas Separator Skid Designed for Offshore Applications
This offshore gas separator skid is intended for gas/liquid separation in a harsh marine environment. It has been developed to operate in hazardous areas and complies with ATEX Directive 2 (3G) – II IIA T3, ensuring safe operation on offshore platforms.
The supply includes a Certificate of Conformity (COC) – Route B, certifying compliance with applicable regulatory requirements, with the involvement of a Notified Body.
Modular Manufacturing for Optimized Offshore Installation
As part of this project, we manufactured a modular gas separator skid, specifically designed to facilitate offshore logistics and installation. The skid is delivered dismantled into three separate sub-assemblies:
- Skid frame, delivered separately
- Pressure vessel, delivered separately
- Process piping assemblies, delivered separately

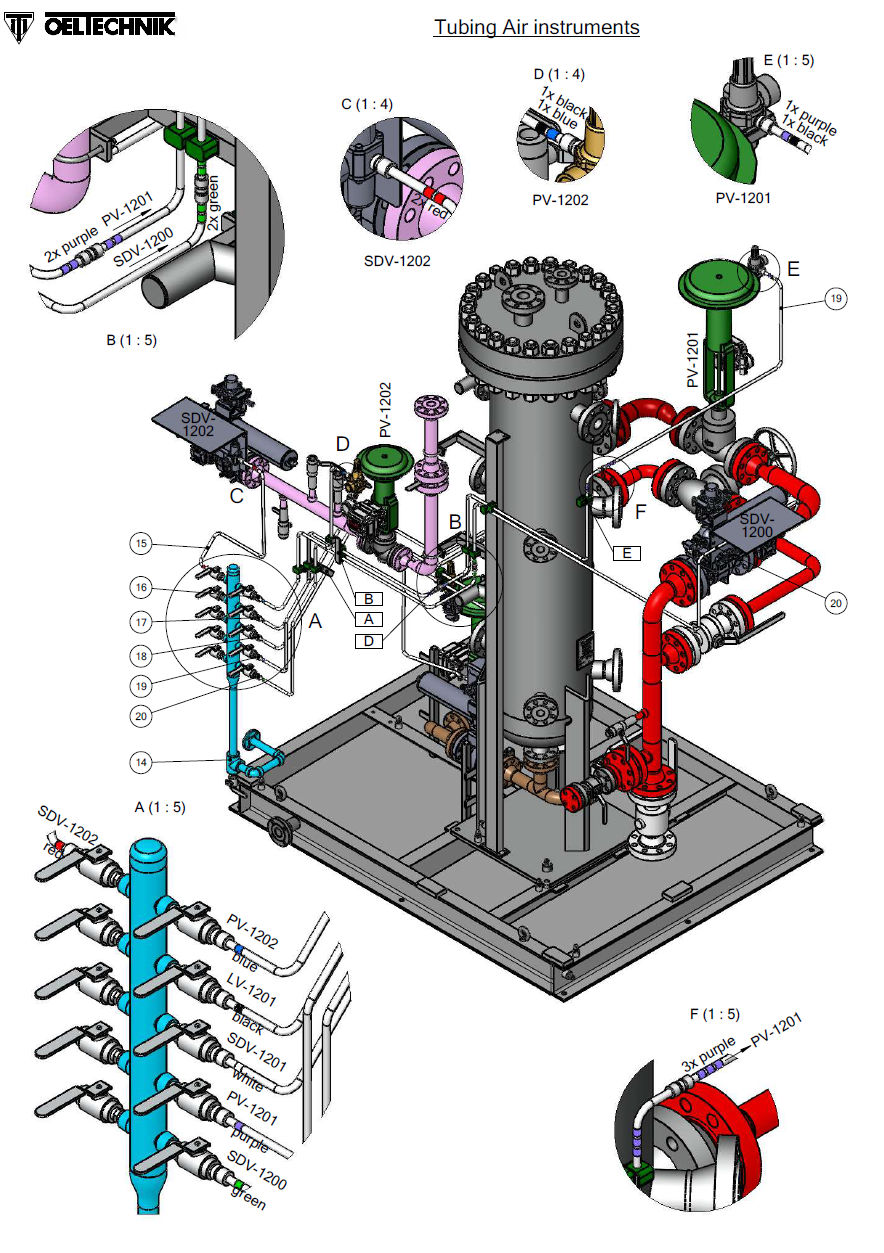

The skid is delivered dismantled and must pass through a restricted access hatch to enable on-site installation. A detailed reassembly manual is provided to ensure safe and compliant assembly directly at the offshore site.
ASME VIII Div. 1 Pressure Vessel – 2023 Edition
The skid is equipped with a pressure vessel that we designed and manufactured in accordance with ASME Section VIII Division 1 – 2023 Edition. To ensure the highest level of quality, the vessel benefits from:
- Full radiographic testing (FULL RT)
- Weld joint efficiency Z = 1, ensuring optimal mechanical integrity
Pressure Vessel Technical Data
- Design pressure (Pdesign): 80 barg
- Design temperature (Tdesign): 0 °C to +100 °C
- Hydrostatic test pressure: 120 barg (1.5 × design pressure)
The hydrostatic test is carried out in the presence of a Notified Body, in accordance with contractual requirements.
A Solution Tailored to Offshore Oil & Gas Requirements
This offshore gas separator skid demonstrates our ability to deliver equipment that is:
- compliant with international ATEX and ASME standards
- suitable for high-pressure offshore applications
- designed for ease of installation and maintenance
- manufactured with a high level of quality control
It is a reliable and robust solution, perfectly suited to offshore oil & gas projects, whether for fixed platforms or offshore production units.
Through the manufacture of this gas separator skid, we demonstrate our expertise in the design and fabrication of pressure equipment for demanding offshore environments. This project fully reflects our commitment to delivering safe, high-performance solutions compliant with international standards.
